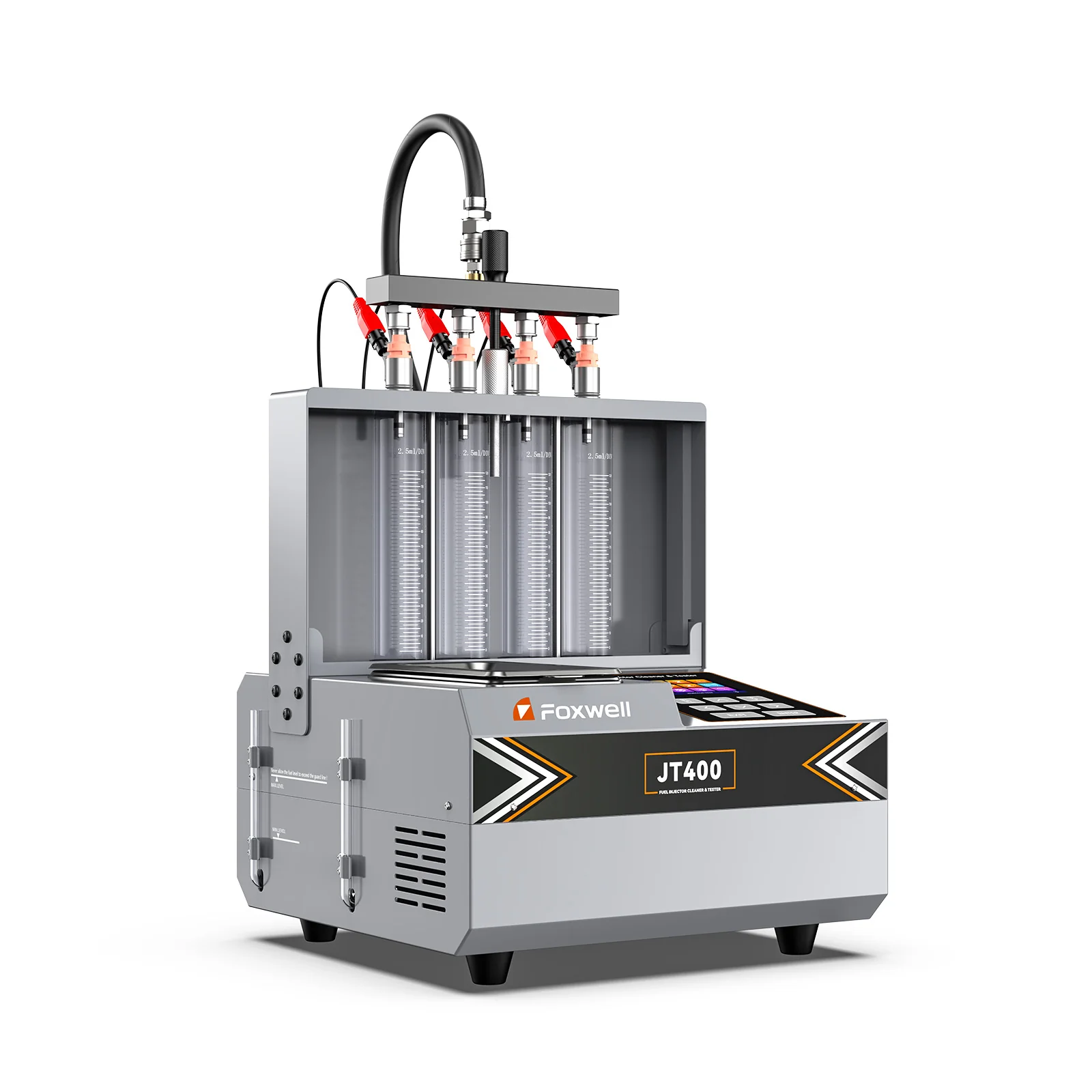

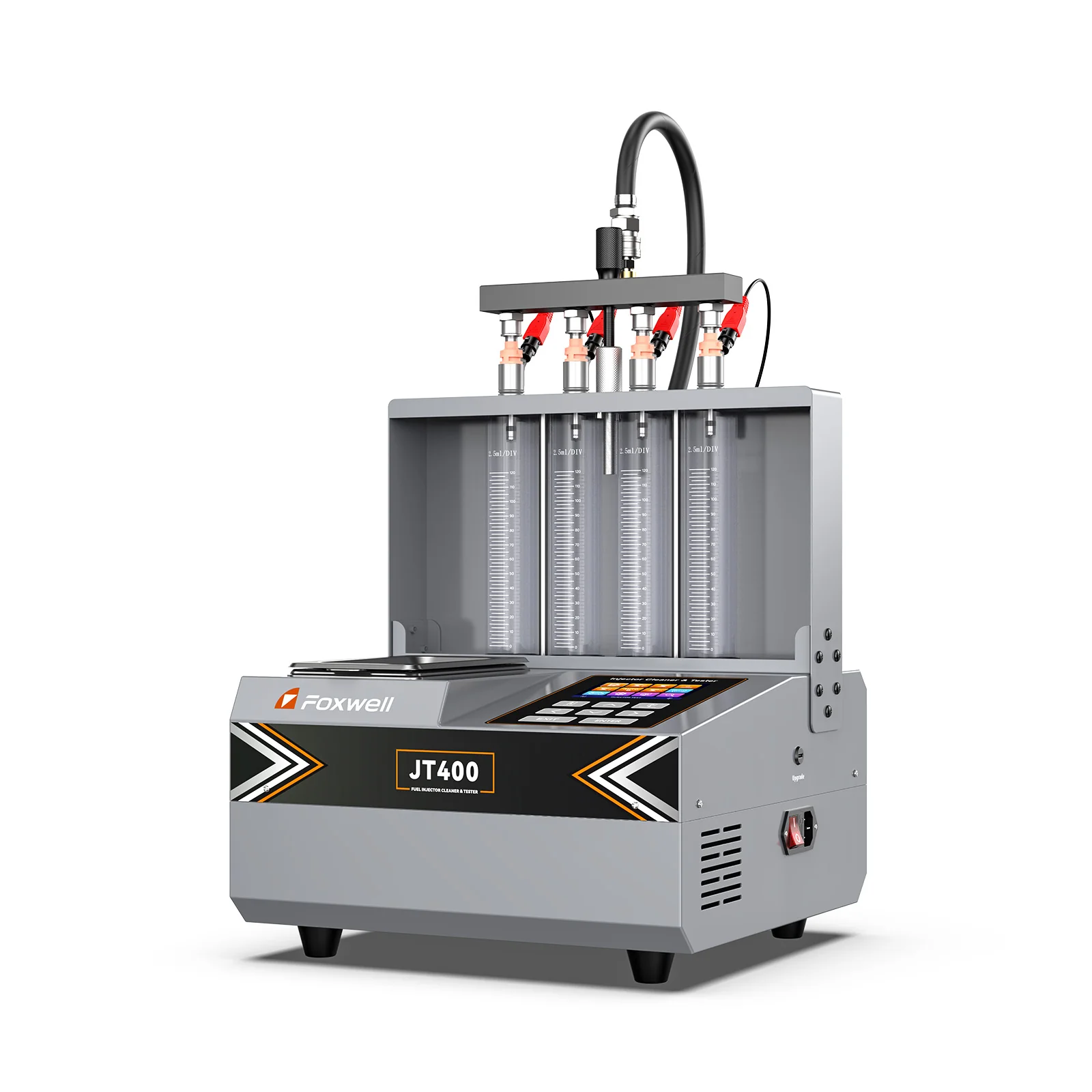

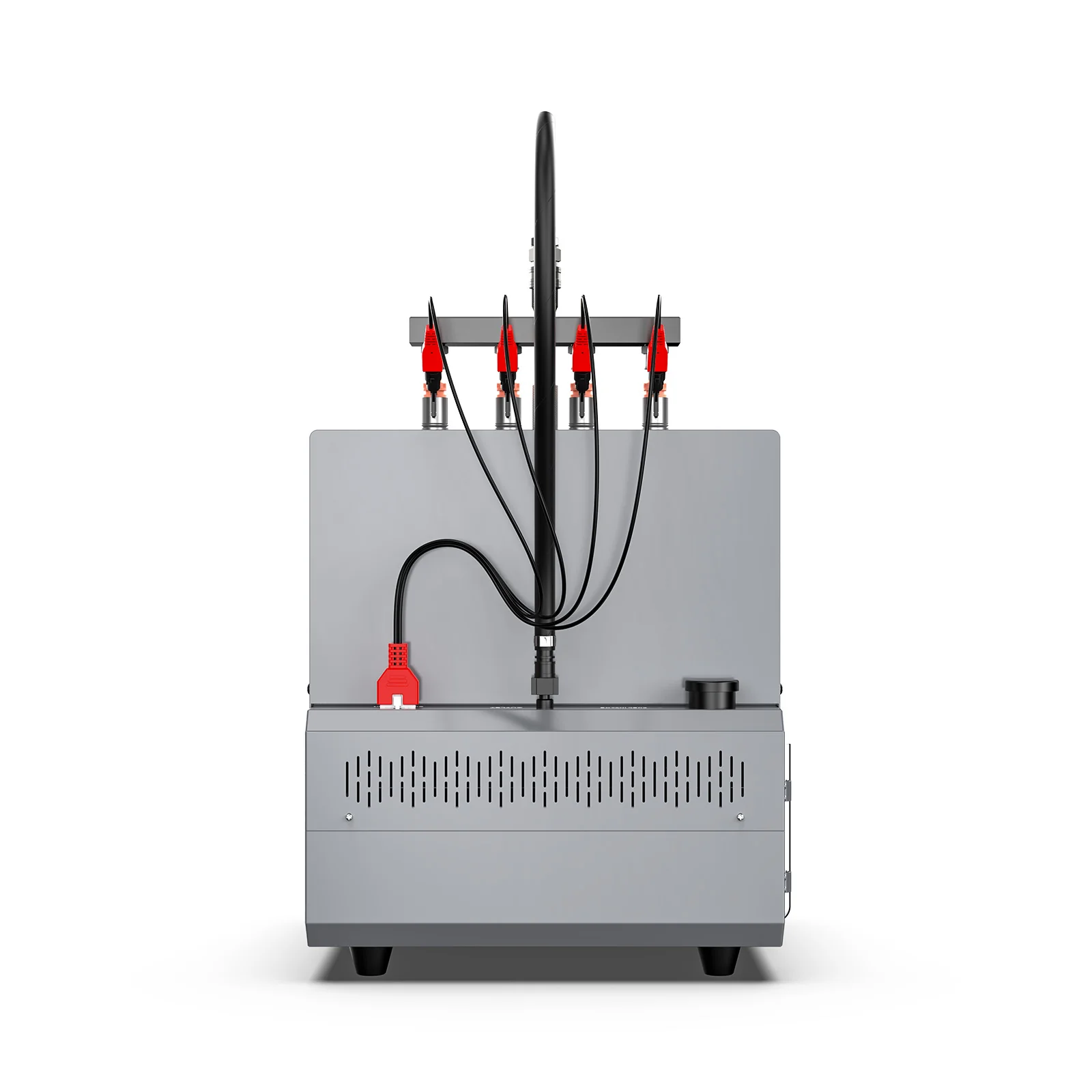

Foxwell JT400 Fuel Injector Cleaner, Ultrasonic Cleaning Machine with Heating Function 4 Cylinder for GDI, EFI, FSI Fuel Injectors
Foxwell JT400 Introduction
Top Reasons to Choose Foxwell JT400 4-cylinder Fuel Injector Cleaner & Tester
● [ 100w Ultrasonic Cleaning ]: Start the machine, and press the key to model 8. It can perform ultrasonic cleaning on single or multiple injectors simultaneously, which can thoroughly eliminate blockages on the injector accessories and internal components.
● [ Automatic Control/Real-time Monitoring ]: Microcomputer automatic control and digital display technology: the cleaning and detection process can be automatically controlled, and the main status parameters can be monitored in real time
● [ Automatic Control/Real-time Monitoring ]: Microcomputer automatic control and digital display technology: the cleaning and detection process can be automatically controlled, and the main status parameters can be monitored in real time
● [ 3L Large Capacity of Cleaning Tank ]: Foxwell JT400 Fuel injector Cleaner only weighs 12KG, allowing to carry around. With a 3L large capacity ultra cleaning tank, all injectors can be cleaned at one time, which saves much time and is more efficient.
● [ Multi Voltage Selection ]: Foxwell JT400 Fuel Injector 4-cylinder Cleaner and Tester designs with various types of voltage output (12V, 70V & 120V) to be selected to adapt to different types of injector testing.
● [Various Parts equipped ]: It is equipped with a variety of injector accessories for different needs.
● [Various Parts equipped ]: It is equipped with a variety of injector accessories for different needs.
● [Environmentally Friendly& Widely Used]: The used cleaning fluid and testing fluid can be easily recovered. Support most of the automobiles and motorcycles in the market. Applicable voltage is compatible with 110V or 220V.
● [ 5 Years Warranty ]: For damage caused by non-human factors, Foxwell promises to resend parts for free within 5 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
● [ 5 Years Warranty ]: For damage caused by non-human factors, Foxwell promises to resend parts for free within 5 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
Foxwell JT400 Main Functions:
1. INJECTOR TEST: Detect the solenoid injectors' resistance
2. UNIFORMITY TEST: Inspect the fuel injection of each injector by observing its uniformity.
3. SPRAYABILITY TEST: Inspect the atomization of each injector by observing.
4. LEAKAGE TEST: Inspect the sealing conditions of the injector needle valve under system pressure to find out the injector with an oil droplet.
5. INJECTION TEST: Inspect the injecting volume in 10 seconds meets the design specifications.
6. AUTO MODE TEST: Inspect the injectors according to the established program 1 of the equipment
7. VARIABLE SPEED TEST: Inspect the injectors in variable speed conditions
8. ULTRASONIC TEST: Clean the carbon deposits inside the fuel injector through ultrasonic
9. ON-VEHICLE CLEAN: Cleaning the engine fuel supply pipeline, injector, and combustion chamber with the machine does not require disassembling.
10. SYSTEM: Set the language and unit of the device operating system, query device information, and restore device factory settings
11. DATABASE: Querying the working pressure of various vehicle models' fuel systems
12. HELP: Querying device fault code information
Foxwell JT400 Main Features
▶ The special structure design makes the disassembly and assembly of the fuel separator easier and greatly improves the work efficiency.
▶ With the resistance test of the injectors one by one, get to know the condition of the injectors.
▶ The ultrasonic cleaner is integrated into the machine, which makes the operation easier and more efficient.
▶ With the dedicated motherboard, it can support the full and long test of low-resistance fuel injectors, such as 1 ohm.
▶ The unique fuel circuit depressurization technology can make the machine automatically depressurize in the case of sudden shutdown, avoiding equipment damage or personal injury.
▶ The brightness of the screen and backlight, and the level of the buzzer can be manually set and saved.
▶ The product adopts fuel pressure adjustment and control technology by microcomputer, which can ensure stable fuel pressure and a wide adjustable range. It is applicable to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.
▶ Thanks to the adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically, and the parameters of the main status can be monitored in real-time.
▶ Adopting humanization design can make the system pressure fast restored to the default values.
Ultrasonic Cleaning Operation:
1. Pour in the injector detergent and place the injectors in the ultrasonic cleaner tank.
2. Connect the pulse signal wire and select the ultrasonic cleaning function to start working.
Fuel Injector Testing Operation:
1. Pour in the test liquid, install the fuel injector in the fuel distributor, and fix the main unit body.
2. Test if the injector is leaking or blocked under different functions.
How to choose a test fluid?
The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easily emitted. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended that professional automotive injector test fluids be used. If it is not available locally, as an alternative, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.
How to choose a cleaning fluid?
Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended that a professional injector use ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not be good enough.
Working Conditions& Specifications:
Voltage：AC220V or 110V，
(customized) Main-unit Max Power：300W
Display: 4.0-inch LCD
Display: 4.0-inch LCD
Ultrasonic power：60W
Pulse range：0.5-25ms ，step 0.1ms
Pulse range：0.5-25ms ，step 0.1ms
Simulated speed：100-9900rpm ，step100rpm
Resistance measuring precision: 0.1 ohm
Resistance measuring precision: 0.1 ohm
Tank volume：3L
Oil pressure: 0~8 bar
Oil pressure: 0~8 bar
Main unit size: 420X440X503mm
Ambient temperature：-10℃-+40℃
Ambient temperature：-10℃-+40℃
Package size: 460*490*555mm
Ambient Humidity：＜85%
Ambient Humidity：＜85%
Ambient magnetic strength：＜400A/m
Packing List:
• Main unit:1 set
• Ultrasonic cleaner cover:1 pcs
• Injector cleaning bracket:1 pcs
• Fuel distributor package:1 set
• 4-cylinder pulse signal cables set
• Pulse signal connection cable 1: 4 pcs
• Pulse signal connection cable 3: 4 pcs
• Pulse signal connection cable 4: 4 pcs
• Adaptor 1 for fuel top-supply injector: 4 pcs
• Coarse thread adaptor for fuel top-supply injector: 4 pcs
• Swiss thread adaptor for fuel top-supply injector: 4 pcs
• Hexangular stopper: 3 pcs
• Adjusting pole(H80): 1 pcs
• Knurled nut: 1 pcs
• Pressing screw: 1 pcs
• Adaptor for GDI injector(D16): 4 pcs
• Top Oil Supply Connector(D17.5): 4 pcs
• Toolbox: 1 pcs
• Oil outlet adapter: 1 pcs
• Power cable: 1 pcs
• O ring 9.72.65: 10 pcs
• User's manual: 1 pcs
